Foundation Repair in Garland, TX, Done Right for Your Soil
Garland is split down the middle underground, limestone near downtown and expansive clay at the edges, so the right fix depends on which Garland your home sits on. FCS matches the right engineered pier method to your soil, and handles foundation, drainage, and plumbing under one roof. Locally owned, serving Garland and DFW for 25+ years.
Accredited & Recognized Across North Texas
Why FCS
Why Garland homeowners choose FCS
Locally Owned, Not a Franchise
A DFW company serving Garland for 25+ years. You deal with the people who stand behind the work.
Lifetime TRANSFERABLE Warranty
Our lifetime transferable warranty follows the home to the next owner, a documented asset at resale.
5 Engineered Pier Methods
Steel, concrete, drilled and hybrid systems, which matters on Garland’s split soil, where downtown and the east side need different fixes.
NFRA Member, Certified Inspectors
Engineer-reviewed work by certified foundation inspectors: a diagnosis, not a sales script.
Free Inspection + Written Estimate
An on-site elevation survey and a transparent, itemized quote, at no cost and with zero pressure.
Foundation, Drainage & Plumbing
One accountable team fixes the movement and the moisture causing it, with no contractors pointing fingers.
The Garland Cause: Split Geology
Why Garland foundations move: limestone downtown, clay at the edges
Garland has a split personality underground, and it changes how homes fail. Central Garland (the older neighborhoods near downtown and along Garland Road) sits on Austin Chalk, a chalky limestone-and-marl. Chalk doesn’t swell like clay, but it weathers unevenly over decades, and homes built on it can develop soft spots and voids under the slab that let a corner drop.
Toward the east side of the city, out past Rowlett and Sachse, the ground grades into younger marls that weather into expansive Blackland clay, swelling wet and shrinking dry, heaving and settling the foundation with each season.
On top of that, most of Garland’s housing stock went up in the 1960s–80s, so those slabs are now 40–60 years old and have felt every drought. Neighborhoods like Duck Creek, Eastern Hills, Embree, Oakridge, Freeman Heights, and Firewheel each behave a little differently.
That’s exactly why “which method?” has a real answer in Garland: it depends on your soil, not a sales script. Our free inspection starts with an elevation survey that tells us which problem your home actually has.
Warning Signs
Signs your Garland home may need foundation repair
Whether your home sits on the chalk downtown or the clay near Rowlett and Sachse, these symptoms rarely fix themselves. They get worse and more expensive to correct.
Stair-step cracks in brick: diagonal cracks wider than ¼ inch mean one corner is moving down.
Cracks over doors & windows: drywall cracks radiating from frame corners point to a shifting slab.
Doors & windows that stick: frames rack out of square as the foundation tilts, so they bind or won’t latch.
Sloping floors: a slope over 1 inch across 15–20 feet is differential settlement, not just an old house.
Gaps at trim & molding: baseboards and crown pulling away from walls or ceilings show the structure separating.
Nail pops & drywall cracks: nail heads pushing through drywall track ongoing movement.
Cabinets pulling from the wall: built-ins separating from the wall follow the slab as it drops or heaves.
Seeing two or more? Book a free inspection before the next dry-to-wet swing.
Foundation Repair Methods in Garland
Five engineered pier methods: which one fits Garland’s soil?
Garland’s split geology is the clearest reason we run five pier methods instead of selling one system to everyone. On limestone near downtown, drilled piers that seat into competent rock make sense; on the clay edges, methods that reach past the active zone matter more. We inspect first, then recommend.
Single-Press Concrete Piers
Pre-cast concrete cylinders pressed to depth under the home’s own weight. Proven and cost-effective for many Garland slab homes on the clay side of the city.
Single-Drill Concrete Piers
Drilled and poured reinforced concrete piers, a strong fit near downtown Garland, where a drilled shaft can seat into the competent chalk below the slab.
Double-Wall Single Steel Piers
Galvanized steel piers driven to load-bearing strata, for heavier structures and the deep, active clay toward the Rowlett and Sachse edges.
Bell-Bottom Drill Piers
Drilled deep and flared into a wide “bell” at the base for maximum bearing: engineered stability for heavy loads and demanding soil.
Hybrid Piling System
Our engineered system combining the strengths of steel and concrete piers, customized when soil conditions vary across a single Garland footprint.
Pier & Beam Repair
Re-shimming, beam and sill repair, and added piers for Garland’s mid-century pier-and-beam homes. It is a different craft than slab piering, and we do both.
Steel or concrete: which pier fits your Garland home?
Steel push piers reach load-bearing strata and cost more; pressed concrete is proven and cost-effective for many Garland homes. The right pick depends on depth, access, and soil (whether your street sits on the downtown chalk or the eastern clay), not on what a salesman happens to be upselling. Because we install all five methods, our recommendation comes from your elevation survey, not a quota.
Straight Talk on Price
What foundation repair costs in Garland
Most competitors hide their numbers. We won’t. Most Garland residential repairs land around $3,300–$8,500, with roughly $5,200 as a typical project. Priced per pier, expect about $1,000–$3,500 each. A severe, full-perimeter lift on a large home can reach $15,000–$30,000+.
Number of piers: the biggest single driver of price.
Pier method & depth: steel and bell-bottom piers cost more than pressed concrete.
Access: interior piers under a slab cost more than exterior perimeter work.
Scope: a few settling piers versus a full-perimeter stabilization.
Price comes down to pier count, method, depth, access, and scope, never a flat guess. Beware lowball quotes that under-pier the home to win the job. Our inspection and written estimate are always free. See our Foundation Repair Cost guide and the Dallas–area cost breakdown for details.
The Honest Answer
Is foundation repair covered by insurance in Texas?
Usually no. Standard Texas policies exclude clay-soil settling and cover only sudden perils: a burst pipe, fire, storm, or impact. Plumbing-related foundation damage may be covered if your policy carries the Texas plumbing-leak endorsement (form HO-143TX). If a leak is the cause at your Garland home, we help document the claim honestly; we will never pretend clay settling is covered. (Education, not legal or insurance advice.)
Fix the Cause, Not Just the Symptom
Foundation leak, drainage & plumbing under one roof
In Garland’s 40–60-year-old homes, aging cast-iron and copper lines are a real factor: a slow under-slab plumbing leak soaks the soil (or washes fines out of the limestone) and mimics or worsens foundation movement. Because FCS does foundation leak repair in Garland in-house, we camera-test the line, find the leak, and fix the cause instead of chasing cracks.
We also handle French drains, surface drainage, and grading, especially near Duck Creek and the low-lying edges of the city, so one accountable team stops the movement and keeps water away from your foundation. One company, one warranty, no finger-pointing.
Older Garland Homes

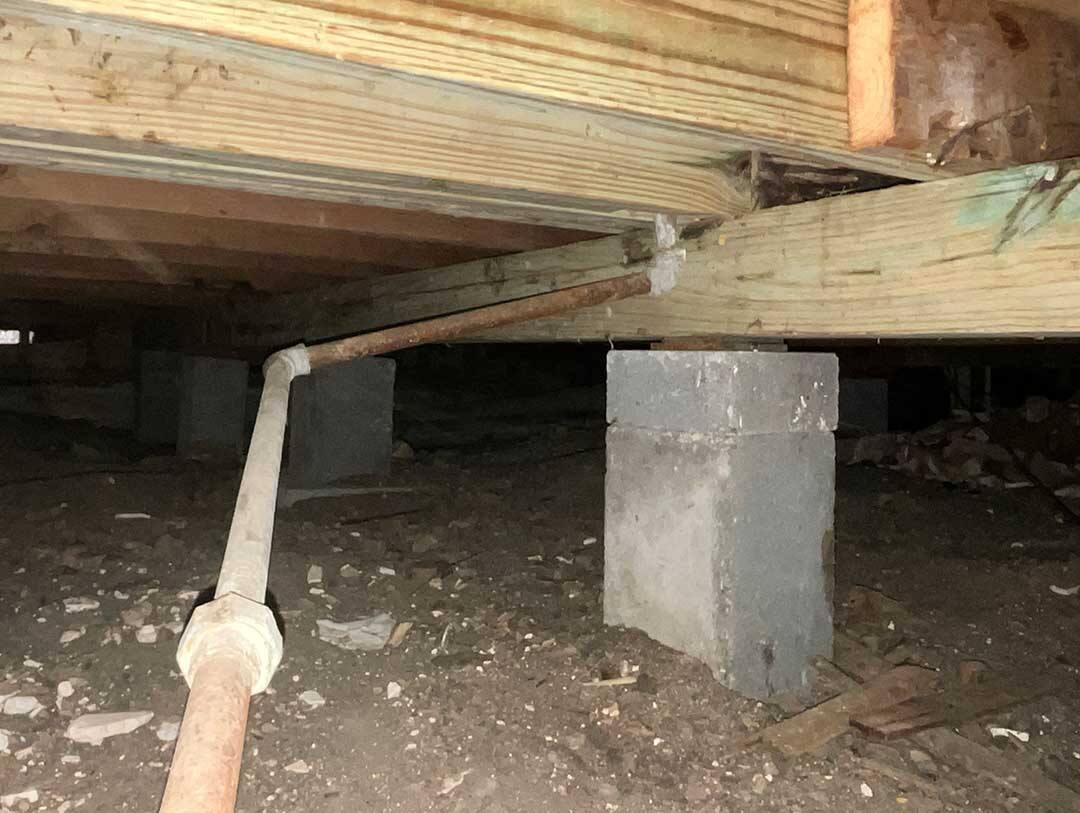

Pier & beam foundation repair in Garland
Garland’s older core near downtown and Garland Road includes many mid-century pier-and-beam homes, raised floors over a crawl space, from the city’s 1950s–60s growth. On limestone that erodes and clay that heaves, those homes settle in their own way: pads drop, beams sag, and crawl-space damp rots the wood over time.
FCS re-shims and re-supports pier-and-beam floors, adds engineered piers where the perimeter has fallen, and corrects the crawl-space drainage causing the rot. It’s a different craft than slab piering, and we do both, so your pier and beam repair matches the age and structure of your home, not a generic slab plan.
How It Works
A clear, honest 5-step process
Free Inspection
We run an elevation survey, map the movement and find the cause (chalk, clay, or a leak), not just the symptom.
Written Estimate & Plan
You get the method, exact pier count, a transparent price and financing options in writing.
Repair
Our in-house crew installs the piers and lifts or stabilizes the foundation, usually in a matter of days.
Backfill, Cleanup & Verify
We backfill, clean the site and re-measure elevations to confirm the fix held.
Lifetime Transferable Warranty
You receive documented warranty coverage that passes to the next owner of the home.
Most repairs are exterior work, so you can typically stay in your home the whole time.
What Homeowners Say
5.0 across 490+ Google reviews
Real reviews from FCS customers across DFW, the same crews and the same methods we bring to Garland.
Pier and beam. TJ inspected all of the crawl space to make accurate assessment. No hard sale. Mario explained proposed work. Floors and walls protected. Overall very satisfied.
My house was built in the 1970s and since our soil is mostly clay there was a lot of damage. The job took 3 weeks and the crews for both the foundation and plumbing were outstanding.
He did an incredible job explaining why my foundation was shifting, not just where… I even hired an independent engineer, and Vince’s repair plan matched the engineer’s recommendations exactly, down to the details.
Our Service Area
Serving every corner of Garland
Proudly serving Garland & the surrounding DFW area.
Common Questions
Garland foundation repair FAQs
Service Area
FCS Foundation Repair Near Garland
Get your free Garland foundation inspection
25+ years on DFW clay and limestone · lifetime transferable warranty · an honest written estimate before you spend a dollar.
